Quotation requests are required in writing and prices cannnot be provided over the phone. Trade Prices require a company letter head or purchase order.
In order to process your quotation request and provide you with an accurate price, we require the following information (click here to see an example of the information we need):
Please note: All of our products are bespoke and made-to-measure, to your exact specifications.
For more help and advice on specifying or pricing our products please call us on (01268) 681612.
The specifications detailed below are for guidance only. If you have any queries please ask - for example if the sizes you require are less than the minimum or exceed our maximum recommended sizes.
|Min. Width||1400 mm|
|Max. Width||7200 mm|
|Min. Height||1600 mm ¹|
|Max. Height||2500 mm|
|Max. Panel Width||1200 mm|
|Max. Panel Weight||70 Kg|
¹ If the door style includes a traffic door the minimum height will be higher as the traffic door hinge is a pre-extruded part. Please ask for more information.

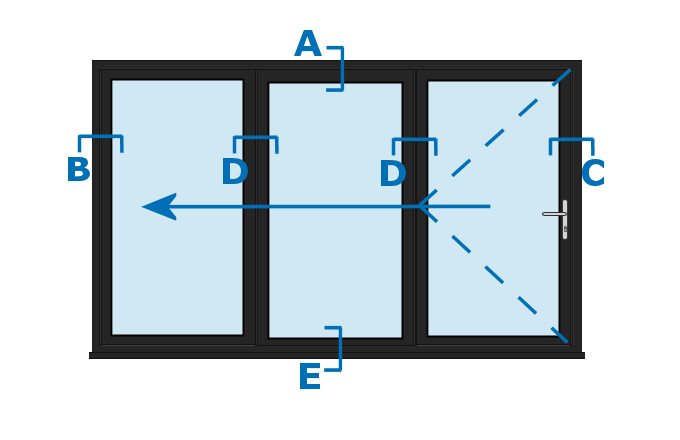

|Head (Section A)||120 mm|
|Extended Head¹ (A)||162 mm|
|Hinge Jambs (B)||120 mm|
|Locking Jamb (C)||123 mm|
|Meeting Stiles (D)||135 mm|
|Standard Threshold (E)||120 mm|
|Standard Threshold & Cill² (E)||145 mm|
|Low Threshold (E)||85 mm|
¹ If trickle vents are required they are inserted into a 42mm head extension.
² An optional 25mm projection cill, can be added to protect the brick work under the doors.
|Frame Depth||76 mm|
|Frame Height||66 mm|
These statistics apply for:
|Specifying - Suitable Applications|
