Slim-line (Equal Leg System)

Available in any of over 200 different RAL colours.

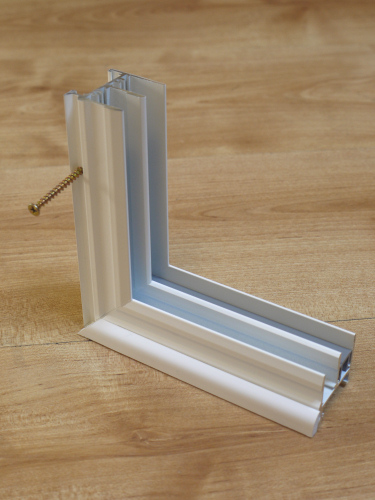

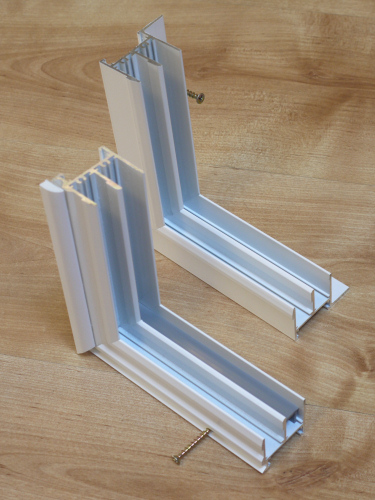

Face fix frames are pre-drilled as standard, reveal fix frames are only pre-drilled upon request.

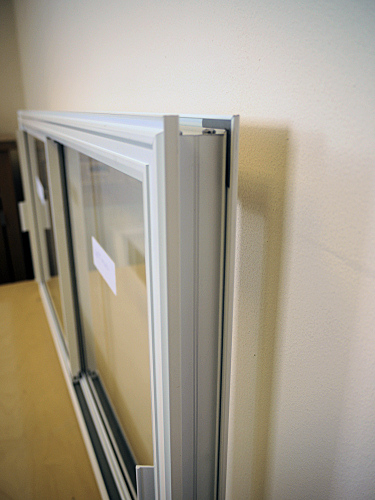

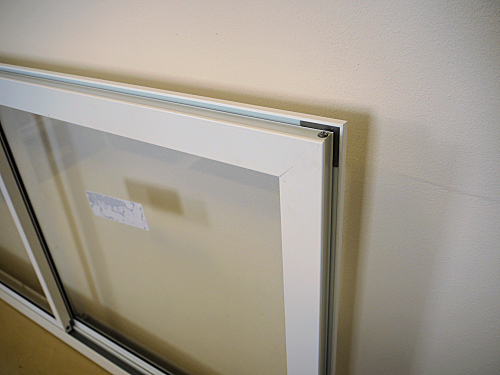

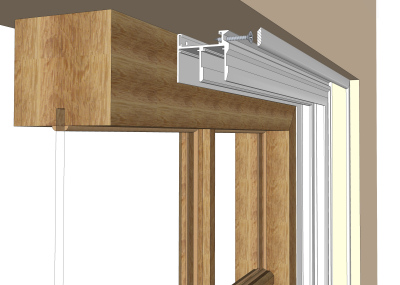

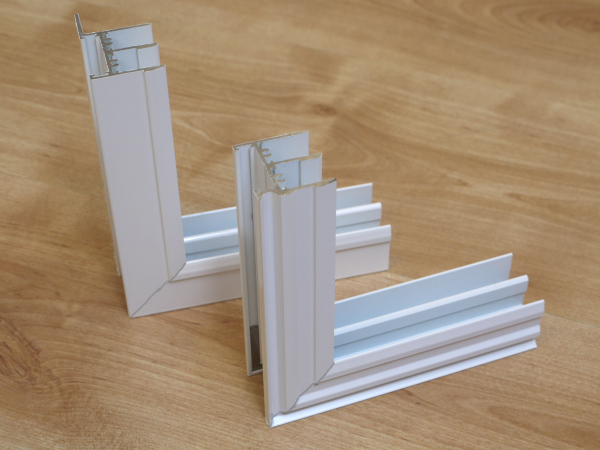

A slim-line all aluminium system that can be face fixed or reveal fixed and is easy to install.

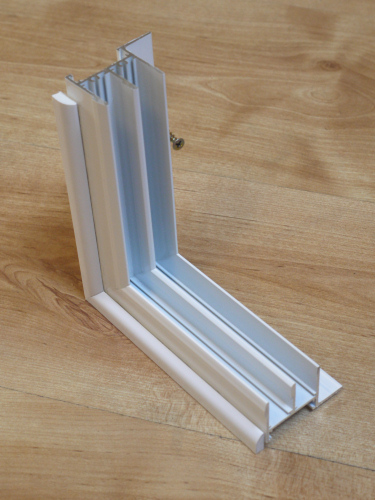

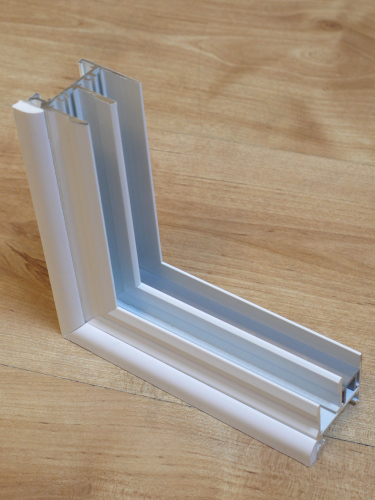

Supplied with cover trims in a selection of shapes and sizes for concealing the subframe and fixing screws.
Variety of glass types available to tailor our secondary glazing to your individual requirements; be it heat, noise or security that is your priority.
Highly suited for domestic applications due to its clean finish and concealed fixings.

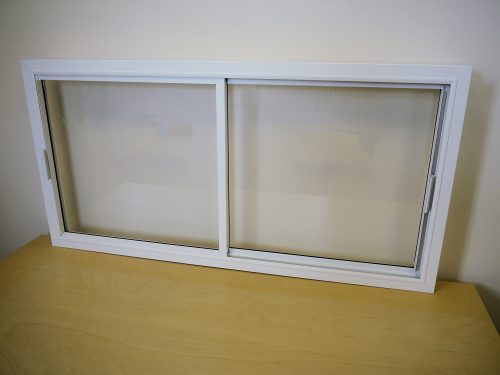

Available as two track horizontal sliders, tilt back vertical sliders, and soon to be available as lift out units. (see table below)

Features

Cover Trims

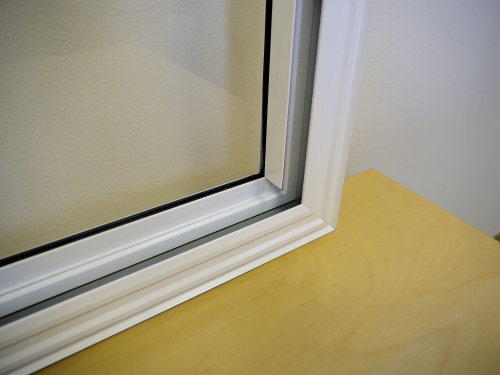

Cover trims are used to hide the fixing screws and provide a nice clean finish for your Secondary Glazing. We offer a range of trims in a range different finishes, including plastic trims, unpainted tulip, primed tulip and solid oak. There are five different trims available in different shapes and sizes, each suited to different applications:

	TM0	TM1	TM2	TM3	TM4	TM5
Width	17mm	22mm	29mm	22mm	34mm	37mm
Curved Edges	1	1	1	2	2	1

Specifying - Suitable Applications
Highly suitable for use in domestic applications due to it's clean finish. Can just as easily be specified for commercial applications. Busy areas where traffic noise is a nuisance - even where double glazing is already fitted. Ideal for use in Listed Buildings, Heritage / Conservation areas and period properties. As a cost effective alternative to replacing your existing single glazed windows. Leasehold properties, where changing the existing windows may be uneconomical. Any property where you are unable to modify the existing external windows. Any window that needs noise reduction and / or draught reduction. Please note: Glass specified must comply to the glass safety BS 6262: Part 4, 1994 regulations. (see document downloads)

	Slim (Equal Leg)
Lift Out
2 Track Horizontal
Tilt Back Balanced Vertical Slider
Balanced Vertical Slider
Non Balanced Vertical Slider

General Downloads
Secondary Glazing Specification Guide	5.5 Mb
Secondary Glazing Measuring Guide	0.3 Mb
Glass Safety (Where you must use safety glass and what is considered to be safety glass)	1 Mb
