Aluminium Secondary Glazing Combination Units

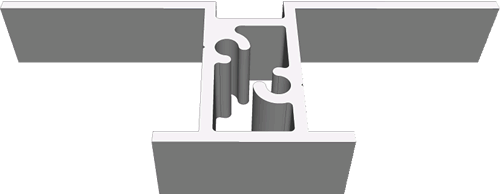

As one of Europe's largest suppliers of secondary glazing we also offer combination secondary glazing units. We can combine Lift Out and Hinged units in a variety of different configurations, which are divided by a dedicated transom / mullion. These combined secondary glazing units can therefore be made up within one outerframe.

Combination secondary glazing is most suited for copying an existing combination window. For example; a bay window consisting of two top hung over fixed lite windows could be treated with a secondary glazing unit consisting of a two top hung windows to line through an match the existing window, over a lift out panel, in order to allow for cleaning of the existing window. These units are designed to save on fitting time and giving slimmer sight-lines, making it quick and easy to align the secondary glazing with the prime window.

Features

Technical Specifications

Specifying - Suitable Applications
  • Combination secondary glazing is most suited for copying an existing combination window. For example; a bay window consisting of three top hung over fixed lite windows.
  • Can be specified for commercial or domestic applications. (Luxury Subframe being most suited to residential applications due to its aesthetic appeal.)
  • Busy areas where traffic noise is a nuisance - even where double glazing is already fitted.
  • Ideal for use in Listed Buildings, heritage / conservation areas and period properties.
  • As a cost effective alternative to replacing your existing single glazed windows.
  • Leasehold properties, where changing the existing windows may be uneconomical.
  • Any property where you are unable to modify the existing external windows.
  • Any window that needs insulation, noise reduction and / or draught reduction.

Please note: Glass specified must comply to the glass safety BS 6262: Part 4, 1994 regulations. (see document downloads)

Technical Downloads

(Technical drawings of dimensions and profiles)
PDF
0.3 Mb
(Technical drawings of dimensions and profiles)
PDF
0.3 Mb
(20 page specification guide, detailing all available secondary glazing.)
PDF
1.8 Mb
(8 page installation and measuring guide for our secondary glazing.)
PDF
0.4 Mb
Technical Downloads
(Glass safety guidelines - where you must use safety glass)
PDF
0.1 Mb
(Operation, Cleaning and Maintenance for Aluminium Secondary)
PDF
0.3 Mb
Technical Drawings - Downloads

Technical drawings can be provided in DWG or DXF format, please contact us.

Downloads Not Working?
If you are having problems downloading documents from our website please be patient as it may take a few minutes.

Make sure you have the latest version of Adobe Reader - you can download Adobe Reader here for free. Alternatively we can send you the file by email - contact us.
