Heritage 'Stepped' Window Technical

The sizes detailed below are for guidance only, maximum widths can vary depending on your chosen height and vice versa. If the sizes you require are less than the minimum or exceed our maximum recommended sizes please ask our technical department for advice.

Recommended Sizes - Top hung
Min. Width (mm) 350
Max. Width (mm) 1250
Min. Height (mm) 300
Max. Height (mm) 1250
Max. Weight (Kg) 50
Recommended Sizes - Side hung
Min. Width (mm) 350
Max. Width (mm) 850
Min. Height (mm) 350
Max. Height (mm) 1250
Max. Weight (Kg) 50
Window Performance
U Value
600 Pa
1050 Pa
2400 Pa
Curved / Arched

These statistics apply for:
ZSB45 vent with 24mm double-glazed sealed units, 90% argon gas filled (low-E, en=0.05, soft coat), swiss V warm edge spacerbars and a centre pane U-Value of 1.2 W/m²k and a g Value of 0.67. Please ask for more details. Download Test Certificates »

Specifying - Suitable Applications
  • Can be specified for light commercial and domestic applications.
  • Meets building regulations for new build. (For Oct 2010)
  • Meets building regulations for replacement and refurbishment projects. (For Oct 2010)
  • Suitable for use in listed buildings, heritage / conservation areas and period properties.
Technical Downloads
1.6 Mb
0.8 Mb
(How to take odd leg measurements - instruction sheet)
1.5 Mb
(Where you must use safety glass and what is considered to be safety glass)
1 Mb
AutoCAD Drawings - Downloads
Technical drawings can be provided in DWG or DXF format, please contact us.

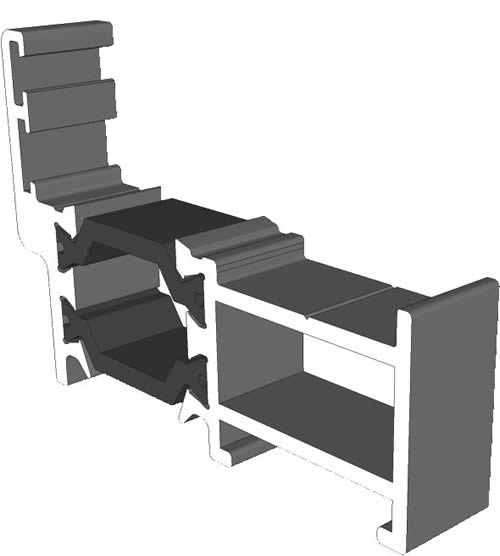

Key Profile Dimensions & Sightlines
Outerframe Depth (mm) 47
Sash Depth (mm) 52 / 56.5
Glazed Sealed Units (mm) 24 (4 x 16 x 4)
Projection Cill height - Optional (mm) 25
Head Extension - Optional (mm) 32
Transom / Mullion - If Required (mm) 50

Please Note:
The details for the sight-lines are illustrated in our Section Identification. Please view this document and / or contact our technical department for more information.
