This comprehensive range of conventional colours are available at a reduced cost and a reduced lead time, when compared to special RAL colours.
Please note that on-screen representations of painted colours are for guidance only, intended to provide an indication of colour.
Duration Windows cannot be held responsible for any discrepancies between on-screen and actual painted colours.
Our Sensations Trend colours are a cost effective and unique range of metallic and textured paint finishes. They are ideal for both modern architecture and restoration projects.
The Trend range has a broad pallet of colours that are pleasing to the eye and to the touch. This is just three of the colours we offer, click the link below to see the rest...
Our Bifold Doors are available in any single or dual special RAL colour paint finish. There are over two hundred different RAL colours available.
Click the link below to see a selection of the available RAL colours.
Choose from clear, laminated, solar control and integral blind options to suit performance, privacy and comfort requirements.
Please note: Glass is supplied separate of the frames and the doors will need to be glazed on site. This helps improve transport and handling while helping ensure your doors arrive in excellent condition.
Functional, high-quality bifold door hardware designed for smooth operation, security and clean modern styling.

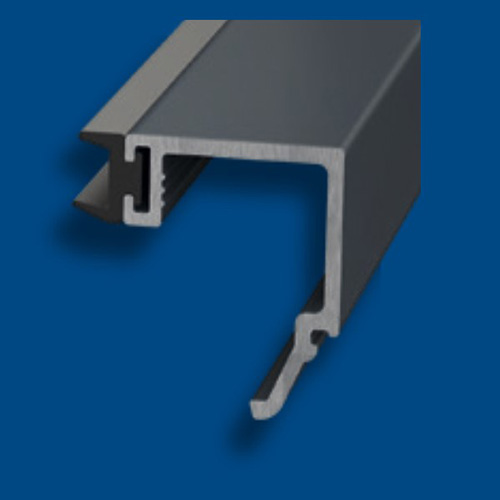

For installers, the Durafold 1000 Slimline’s Quick-Glaze Bead features an integrated gasket and is simply tapped in on site, without the need for a wedge gasket.
This makes the installation and glazing process faster, more straightforward and more cost effective.
Traffic door handles are designed for quick and easy inside and outside access. Both the Standard and Nouveau handles come with high-security Superior locking cylinders and operate high-security multi-point locking.
The Pendulum handle has a smooth, classic design and is available on both intermediate styles and traffic doors. It is designed to pull in heavy panels, drives shoot bolt locking and has key locking as standard.

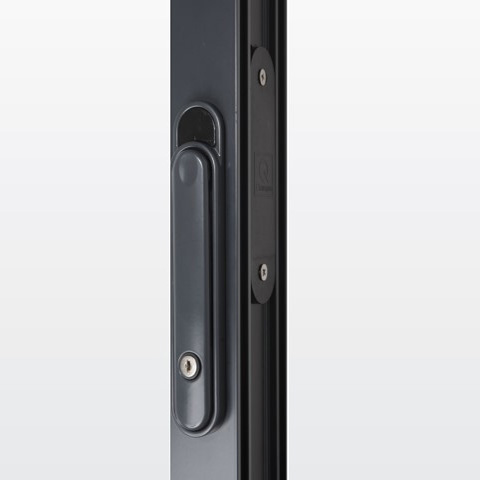

On single white or single anthracite grey doors, Centrefold intermediate handles are available. The lever folds down vertically when not in use and locates neatly within a recess in the backplate.
To operate the lock, the user pushes the lever in at the top, allowing movement from the vertical closed position through 180 degrees.
D-handles are an optional handle used in conjunction with the intermediate handles. They are ergonomically designed, easy to use and fitted only to the inside of the doors.
Integrated into the hinge, they provide a solid hand-hold for pulling and sliding the doors open and closed.
Four-wheel bogie assemblies travel on twin stainless steel tracks to deliver smooth, graceful operation.
The bogie wheel assemblies support the full weight of the doors and include a dedicated guide running inside the outerframe for added stability and increased security.
On suitable traffic-door configurations, high-strength buffer magnets may be fitted to hold the traffic door against the adjacent panel in an open position.
They also act as a buffer, helping prevent traffic door handles from knocking against adjacent panels.
A traffic door allows quick and easy access from both inside and outside without needing to slide and fold back the main bifold panels.
If your chosen style does not allow for a traffic door, there will be no outside access and at least two panels must be folded to open the doors.
Bi-folding doors slide in pairs, so an uneven number of panels folding in one direction creates an odd panel that can operate independently. This panel is known as a traffic door.
Durafold 1000 Slimline bifold doors have been designed with security in mind, combining robust hardware, secure glazing and dependable locking points for confidence every day.
When anyone has new windows or doors installed in their home, security is always at the forefront of their mind. That is why all of our doors have been designed and manufactured with security in mind, giving excellent security without compromise.
From high security multipoint locking and superior cylinders through to internally glazed units and anti-jemmy bogie guides, every detail has been developed to help keep the system safe, secure and dependable.
Traffic doors are fitted with high security multipoint locking as standard. The lever-lever operated mechanism provides six locking points, including deep throw hook locks, a latch, dead bolt and adjustable roller cams to pull the door in tight for added security and weather performance.
The cylinder used on these doors is designed to deliver greater protection than a standard euro cylinder, with resistance to picking, bumping and drilling, plus a sacrificial break slot to improve security in the event of attack.
Even though intermediate handles are generally positioned internally, they still include key locking as standard for extra peace of mind. They can also be keyed alike so one key can operate all intermediate handles on the bifold.
Heavy duty shoot bolts secure the top and bottom of each intermediate panel. Operated by a pendulum handle, they are designed for a tight fit, smooth engagement and strong compression, helping create a solid barrier against forced entry.
The bogie wheel assemblies run with a dedicated guide inside the outerframe channel at the top and bottom of the doors. This adds strength, stability and anti-jemmy protection, helping prevent the panels from being forced off track.
Toughened safety glass is supplied as standard, with sealed units internally glazed using a high security bead. Because the units are installed from the inside, they can only be removed internally. Laminated security glass is also available as an upgrade.
Choose from fully weather-rated rebated thresholds or lower flush threshold options where a reduced step is preferred. Each option is designed to suit different installation requirements and exposure levels.
Fully weather-rated threshold options for standard installations.
Fully weather rated.
Fully weather rated.
Fully weather rated.
Fully weather rated.
Lower threshold options recommended for use in low to medium exposed areas.
Recommended for use in low to medium exposed areas.
Recommended for use in low to medium exposed areas.
Recommended for use in low to medium exposed areas.
Recommended for use in low to medium exposed areas.
Ultra-low threshold options recommended for use in low to medium exposed areas.
Recommended for use in low to medium exposed areas.
Recommended for use in low to medium exposed areas.
Recommended for use in low to medium exposed areas.
Recommended for use in low to medium exposed areas.
Technical information and specification guidance for the Durafold 1000 Slimline bifold door system, including sizes, sight lines, performance and opening styles.
Widths wider than 6250 can be achieved with a mechanical join. Panels can also be made less than 700mm wide — please contact our technical department for advice.
| No. of Door Panels | 2 | 3 | 4 | 5 | 6 | 7 | 8+ |
|---|---|---|---|---|---|---|---|
| Min Width (mm) | 1400 | 2100 | 2800 | 3500 | 4200 | 4900 | Please Ask |
| Max Width (mm) | 2400 | 3600 | 4800 | 6000 | 7200 | 8400 | Ask |
Please remember all sizes are for guidance only and are subject to the location of the fitted product.
*Please be advised: doors over 2500mm tall may be subject to a wind loading check. In this case, location, postcode and facing of the doors may be required.
These statistics apply for open out doors with a suitable glass unit.
The details for the bottom sight-lines and step height are the optimum / best case scenario for open out doors that have been sunk / dropped into the floor.
Doors shown are all viewed from the outside. All doors can be made to open in or out and there is no cost implication to choosing open in or open out doors.
Download specification sheets and full product brochures.
