Manufactured in the UK with Nationwide Support

Trusted - 10 Year Guarantee - Delivering Nationwide

Aluminium Window & Door Manufacturers Since 1985

UK Made • 10-Year Warranty • Nationwide Delivery • FastTrack Available

Modern Aluminium Window & Doors

High Security Locking • Slim Sightlines • Enhanced Thermal Performance

Sustainability Award 2025
Build Winner Duration Windows
Award of Excellence 2025
NFA24 Aluminium Fabricator of the Year
Building and Facilities News Winner 2024
Most Popular

Internal Screens

The Heritage Interior Screening System has been developed to create light and airy internal environments. The system’s sleek and elegant lines perfectly complement our window and door ranges.

Hardware Options

Essential hardware choices for safety, access and performance.

Concealed Panic Bar

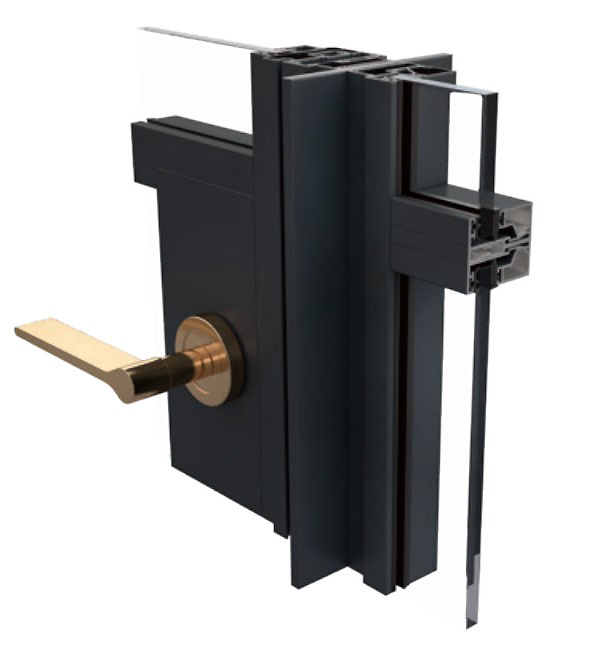

Lever On Round Rose Handle

Lever handles are used on the internal hinged doors to operate the door. Colours: Matt Black (Standard as Stocked) Antique Black Satin Brass Satin Nickel Polished Nickel Matt Bronze

Heritage Internal Screens – Fixed Screens

Recommended sash sizes, sight lines and technical information for fixed internal screening.

Recommended Sash Sizes

Min. Width
250 mm
Max. Width
1250 mm
Min. Height
250 mm
Max. Height
2500 mm

Sight Lines

Head / Top
33 mm
Jamb / Side
33 mm
Mullions / Transoms
33 mm
Bottom – Std Threshold
33 mm

System Information

  • Designed to divide or delineate both residential and commercial spaces
  • Provides an effective acoustic barrier
  • Available in fixed screen, hinged door and sliding door configurations
  • Choose from a range of standard and RAL colours

Heritage Internal Screens – Hinged Single Doors

Recommended sash sizes, sight lines and technical information for hinged single door configurations.

Recommended Sash Sizes

Min. Width
400 mm
Max. Width
900 mm
Min. Height
1700 mm
Max. Height
2200 mm
Max. Sash Weight
60 Kg

Sight Lines

Head / Top
63.5 mm
Jamb / Side
63.5 mm
Mullions / Transoms
33 mm
Bottom – Goal Post Frame
51.5 mm

Technical Notes

  • Suitable for hinged single internal door arrangements
  • See section identifications for more detailed technical drawings
  • Part of the wider Heritage Internal Screens system

Heritage Internal Screens – Hinged Double Doors

Recommended sash sizes, sight lines and technical information for hinged double door configurations.

Recommended Sash Sizes

Min. Width
800 mm
Max. Width
1800 mm
Min. Height
1700 mm
Max. Height
2200 mm
Max. Sash Weight
60 Kg

Sight Lines

Head / Top
63.5 mm
Jamb / Side
63.5 mm
Mullions / Transoms
33 mm
Meeting Stile
109.5 mm
Bottom – Goal Post Frame
51.5 mm

Technical Notes

  • Suitable for hinged double door internal screen layouts
  • See section identifications for more detailed technical drawings
  • Part of the wider Heritage Internal Screens system

Heritage Internal Screens – Sliding Doors

Recommended sash sizes, sight lines and technical information for sliding internal door configurations.

Recommended Door Sash Sizes

Min. Width
400 mm
Max. Width
1200 mm
Min. Height
1700 mm
Max. Height
2500 mm
Max. Sash Weight
100 Kg

Sight Lines

Head / Top
114 mm
Jamb / Side
38 mm
Mullions / Transoms
33 mm
Meeting Stile
38 mm
Bottom – Goal Post Frame
35 - 75 mm*

*Dependent on configuration.

Technical Notes

  • Suitable for sliding internal screen door arrangements
  • Bottom frame dimension varies depending on configuration
  • See section identifications for more detailed technical drawings

Product Literature

Download specification sheets and full product brochures.
