Modern Aluminium Window & Doors

High Security Locking • Slim Sightlines • Enhanced Thermal Performance

Heritage Door Style Options

A selection of popular configurations for our steel replacement heritage doors. Single and double doors can be manufactured with various bar layouts and optional kick plates to suit both traditional and contemporary properties.

Configuration Codes

  • AS – Single door styles
  • AD – Double door styles
  • BS – Horizontal bar styles
  • BD – Double doors with horizontal bars
  • CS – Vertical grid styles
  • CD – Double doors with full grid

All doors are bespoke and can be customised with different glazing layouts, colours and hardware options to suit your project.

Heritage Door Hardware

Choose from classic lever styles in a wide range of traditional and contemporary finishes to complement your steel replacement door design.

Our Heritage aluminium doors are available with standard lever-lever handles, alongside decorative heritage styles including Pear Drop, Monkey Tail and Kurled lever options.

Standard Lever handle

Standard Lever

A clean, practical lever-lever handle available in core stock and bespoke colour finishes.

Pear Drop Lever handle

Pear Drop Lever

A more decorative heritage handle style with a softer period look and a broad premium finish range.

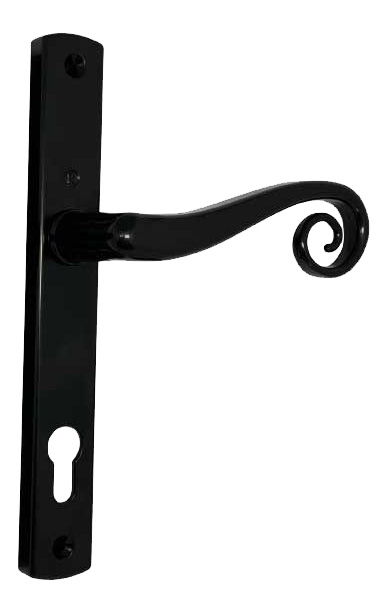

Monkey Tail Lever handle

Monkey Tail Lever

A classic curled heritage handle option, ideal for a more traditional steel-look appearance.

Kurled Lever handle

Kurled Lever

A refined linear lever with a more understated heritage feel, offered in a smaller curated finish set.

Heritage Steel Replacement Doors – Technical Specifications

Recommended door sizes, sight lines, profile dimensions and supporting technical download information for the Heritage steel replacement door system.

Single Doors – Recommended Sizes

Single Door
Min. Width (mm)
600
Max. Width (mm)
900
Min. Height (mm)
1600
Max. Height (mm)
2200
Max. Panel Width (mm)
900
Max. Sash Weight (kg)
60

Single Doors – Sight Lines

Sight Lines
Head / Top (mm)
58.5
Jamb / Side (mm)
58.5
Mullions / Transoms (mm)
40.5 or 25
Bottom – Std Threshold (mm)
58.5
Std Threshold (mm)
33
Bottom – Low Thresholds (mm)
N/A

Double Doors – Recommended Sizes

Double Door
Min. Width (mm)
1200
Max. Width (mm)
1800
Min. Height (mm)
1600
Max. Height (mm)
2200
Max. Panel Width (mm)
900
Max. Sash Weight (kg)
60

Double Doors – Sight Lines

Sight Lines
Head / Top (mm)
58.5
Jamb / Side (mm)
58.5
Mullions / Transoms (mm)
40.5 or 25
Meeting Stiles (mm)
98.5
Bottom – Std Threshold (mm)
58.5
Bottom – Low Thresholds Height (mm)
N/A

Key Profile Dimensions

Profiles
Outerframe Depth (mm)
47
Sash Depth (mm)
52
Glass Sealed Units (mm)
24 (4 x 16 x 4)
Projection Cill Height – Optional (mm)
25
Head Extension – if required (mm)
20
Coupling Bar – if required (mm)
8

See section identifications for more information and detailed technical drawings.

Specifying – Suitable Applications

Use Cases
  • Can be specified for domestic or light commercial applications.
  • Meets building regulations for new build. (For Oct 2010)
  • Meets building regulations for replacement and refurbishment projects. (For Oct 2010)
  • Standard threshold; suitable for use on the ground floor up to second floor. (Fully weather rated threshold)

Product Literature

Download specification sheets and full product brochures.
