How To Request A Quote

If you want to get a quote for one of our products there are several options available to you:

Please be aware that we need quotation requests in writing and cannot provide prices over the phone. If you require a Trade Price we need a company letter head or purchase order.

What Information Do We Require?

In order to process your quotation request and provide you with an accurate price, we require the following information (click here to see an example of the information we need):

  • The product you wish for us to quote. (i.e. aluminium windows)
  • The system you wish for us to quote. (i.e. Premium Plus Windows)
  • The product details, including; sizes, colours, glass, styles and designs for each item.
  • Any additional information, requirements or specialist instructions. (For example... I require; direct fix outerframes, internally glazed sashes, trickle vents, a 150mm projection cill etc.).

Please note: All of our products are bespoke and made-to-measure, to your exact specifications.

For more help and advice on specifying or pricing our products please call us on (01268) 681612.

Download Quote Form

Glazing Beads

Internally or Externally Glazed

Aluminium Window profiles; Outerframe, Opening Vents and Glazing Beads

The glazing bead is the aluminium profile that secures the sealed units (or glass) into the aluminium window frame or opening vent. When inserting glass into a window system (often referred to as Glazing the window) the glazing bead and wedge gaskets are the last pieces of the window that you fix into place. Some windows are externally glazed (also known as “externally beaded”), while some are internally glazed (also known as “internally beaded”). Some window systems will use a mix of internally glazed and internally glazed sections within a single window.

There have been many arguments over the years as to whether internally glazed or externally glazed windows are better for security. With people using arguments such as: “If you glazed a window from the outside then you can de-glaze it from the outside. Therefore externally beaded windows cannot possibly be secure.” Along with counter arguments such as “Internally beaded PVC windows can simply have their glass units forced in”.

The majority of people in the industry once considered externally glazed windows to be less secure. This is simply due to the fact that internally glazed windows were developed, introduced and advertised as the more secure option. This is no longer the case due to the fact that the majority of externally glazed windows use modern technology, which means that the external glazing beads simply cannot be removed without removing the internal wedge gasket first.

The simple fact is that both internally beaded and externally beaded aluminium windows are secure and the industry standard tests are there to prove it. Therefore if a window system can pass these tests they are deemed to be secure. So in the absence of any other even more stringent tests and standards, which should you choose, Internal or external glazed?

Key Points About Internally Beaded Windows:

  • Can make installation far easier by allowing the installer to fit the frame from inside the building, without the need for scaffolding.
  • Once considered to be more secure than externally beaded windows, however due to modern technology and the strength of aluminium, externally beaded aluminium windows are just as secure.

Key Points About Externally Beaded Windows:

  • Externally beaded can provide a slimmer sight-line than internally beaded.
  • From inside, the window may look neater as there are no bead lines.

Both external and internal beads on a single window:
Often you will find that a window system will mix internal and external beads on a single window. This is generally due to the fixed lites being externally glazed. Windows that do not open (otherwise known as fixed lites) are generally glazed from the outside directly into the window frame. Therefore, a window which is made up of an opening sash next to a fixed pane - would be internally beaded on the opening vents and externally beaded on the fixed pane. This gives the best looks and slimmest sight-lines. If you wish to have internally glazed through-out your windows you would normally have to opt for dummy sashes or a double beaded window frame. Dummy sashes provide equal sight-lines, as all the fixed lites are created by fixing opening vents into the outerframe, and are internally glazed.

Find out more about glass and glazing »

This information was taken from the Duration Windows Blog. Scources include, aluminiumtradesupply.co.uk and double-glazing-forum.com.

Premium Plus Windows

Heritage Windows

Beaufort Premium

Our Premium aluminium windows offer high performance, security and slim-lines. They are very thermally efficient windows, with many styles and designs to suit any home.

These windows are now even better with most frame and vent combinations being A Rated, and are at a much reduced cost. Visit us and see for yourself.

Visit Our Exhibition Centre

Friction Hinges

Friction Hinges

Friction hinges provide added security over traditional hinges and allow the window to be held open in any given position. They also move across the window to allow for easy cleaning of your windows from inside.

Our windows can be fitted with modern industry standard friction hinges, egress friction hinges for fire escape windows, or restrictor friction hinges for safety.

Find Out More

Paint Finish

Beaufort Premium Windows onHover Pic

Our products are all painted with a hardwearing polyester powdercoat paint, the paint is built to last and baked onto the aluminium.

Our Premium aluminium windows are available in a standard white, black, brown, dark grey, dove grey and cream. You can also have you window painted in dual colour or any of over 200 single or dual RAL colour finishes.

Find Out More

Slim Profiles

Beaufort Premium Windows onHover Pic

Using the natural strength of aluminium these windows are made to be nice and slim. As a result this window system provides more glass area and less frame, maximising light and solar gain into the property.

This window system can achieve sight-lines on fixed lites of 43mm and sight-lines on openers of 65mm.

Find Out More

Security

Beaufort Premium Windows onHover Pic

These windows come with a high security multi-point Trojan shootbolt lock, which also helps provide excellent compression.

They are largely stainless steel in construction for strength & ultimate corrosion resistance. The lock consists of multiple espag locks with shootbolts top & bottom, providing increased security & tested to the equivalent of PAS 24 (BS 7950) for enhanced security.

Find out more

Outerframes

Beaufort Premium Windows onHover Pic

These windows are available with a variety of different outerframes, including a standard direct fix, ovolo, odd leg, equal leg and a square direct fix frame and provide a variety of options for different applications.

This versatility means that this window system can be fitted into existing or new timber frames, or directly to the brick work.

Design Your Windows

Glass Options

Glass Options

For your windows you can have either double glazed or triple glazed sealed units and choose between a wide range of different glass designs & glass options. You can have standard clear glass, square / diamond leads, georgian grills, astragal bars, patterned / decorative glass, obscure or textured glass.

Other options include self cleaning glass, solar control glass and laminated safety glass.

Find out more

Handle Options

Beaufort Premium Windows

There is a selection of handles available for your windows, which are available in a variety of colours. With modern and period handles, to suit traditional or contemporary properties.

These options include industry standard espag handles, basic cockspur handles and our Chelton handle range. The Chelton handle range consists of a modern Slim-line, an Art Deco and a classic Monkey Tail handle.

Find Out More

Thermal Efficiency

Thermal Efficiency

These windows use some of the latest technology, such as an extra wide in-line plyamide thermal break & argon gas, to achieve window energy ratings (WER) as high as ‘A’ and U-values as low as 1.3 W/M²K.

Our standard double glazed sealed unit for these windows is Planitherm Total+, with a warm edge spacerbar & centre pane U-value of 1.2 W/M²K, they exceed the Building Regs.

Find Out More About WERs

High Performance Windows

High Performance Windows

These exceptional windows provide the very best in performance:

Overall U-Value:1.6 W/M²K
Air Permeability:600 Pa
Water Tightness:600 Pa
Wind Resistance:2400 Pa

Find out more

Opening vent Options

Opening Vent Options

There are a variety of internal and externally beaded vents, which can be top hung, side hung or even bottom hung. They provide a variety of attractive style window options, to achieve contemporary or period appearances, so there is something to suit any home.

This includes a modern flat vent, a chamfered vent, a feature vent and a classic steel window style stepped vent.

Find out more

We use Cookies to ensure that you get the best possible experience on our website

If you continue without changing your settings we will presume that you are happy with the use of all cookies on
this website. You can visit our cookies page to find out more or change your settings at any time.

Smarts 47 Aluminium Windows

Smarts 47 Slim-line Aluminium Windows

Smarts 47 Windows are very popular, and offer everything you would expect from a quality aluminium window. The inherent strength of the aluminium means the frame is slimmer than PVCu or timber, letting the maximum amount of light into your home. These windows are available in a wide choice of finishes and colours, including dual colours and are now also available with our Chelton® Handle Range.

Read More...

These residential aluminium windows are designed to significantly reduce heat loss and outside noise. They meet all the latest requirements for new build replacement and refurbishment projects, and provide excellent weather performance. By using high quality 28mm sealed units and Polyamide thermal break technology, they will keep your home warm, quiet and comfortable all year round.

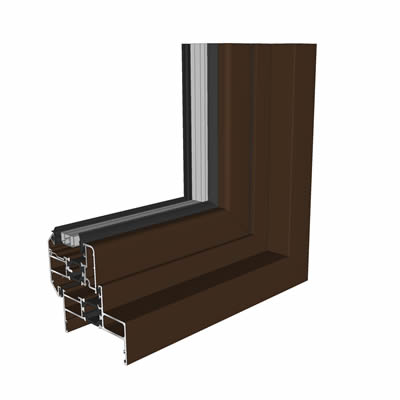

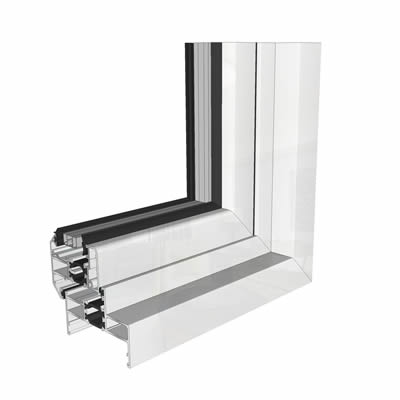

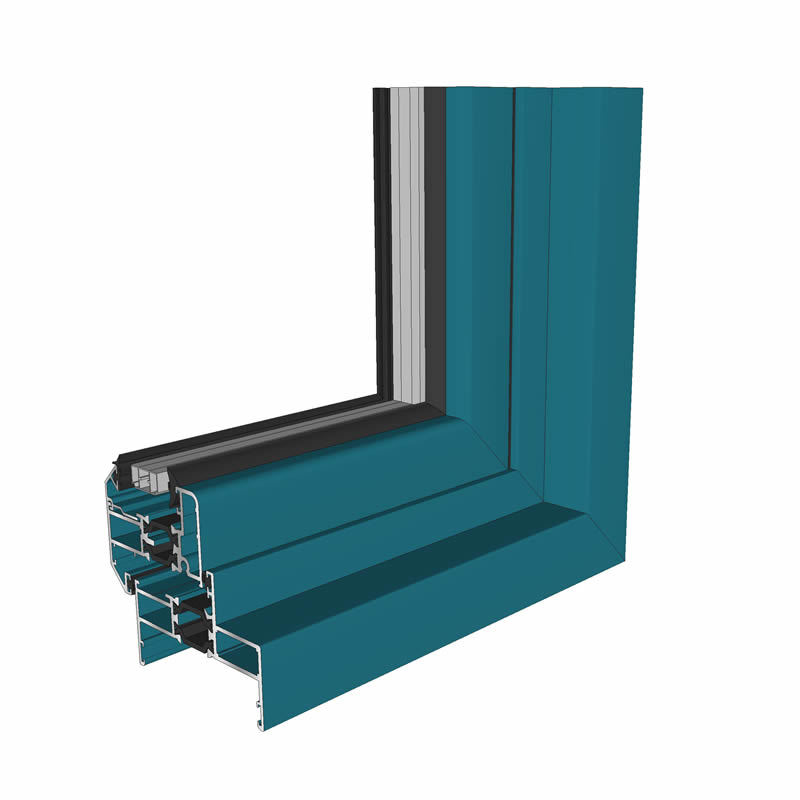

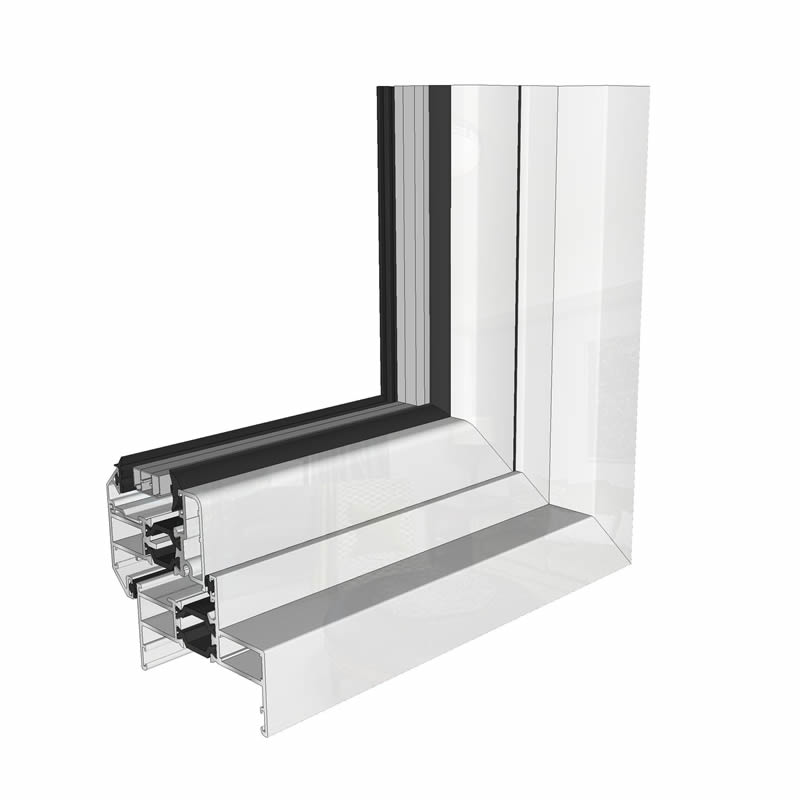

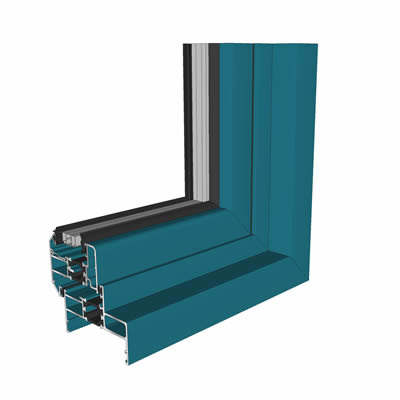

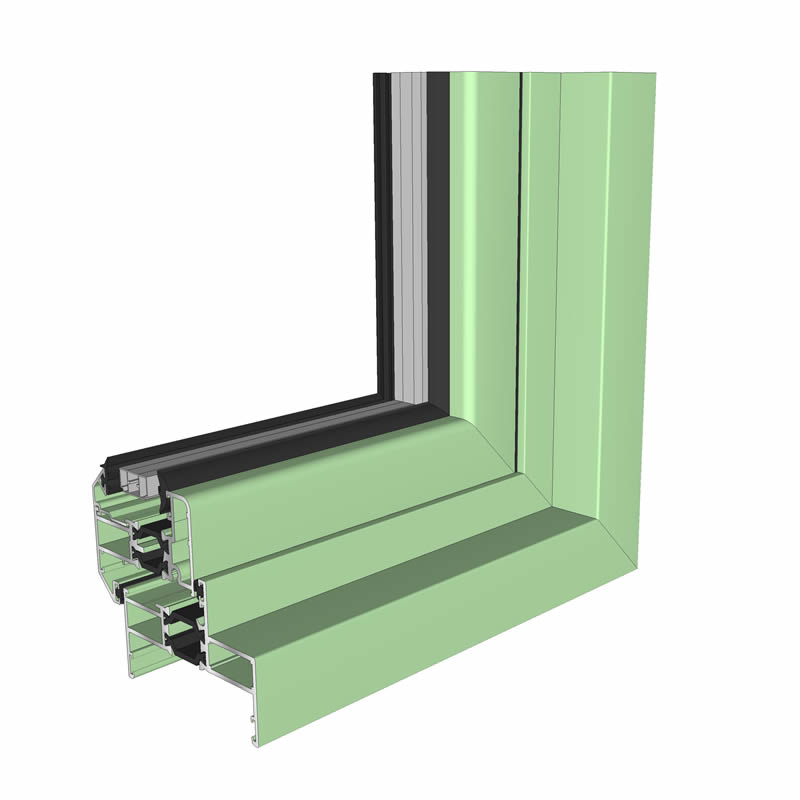

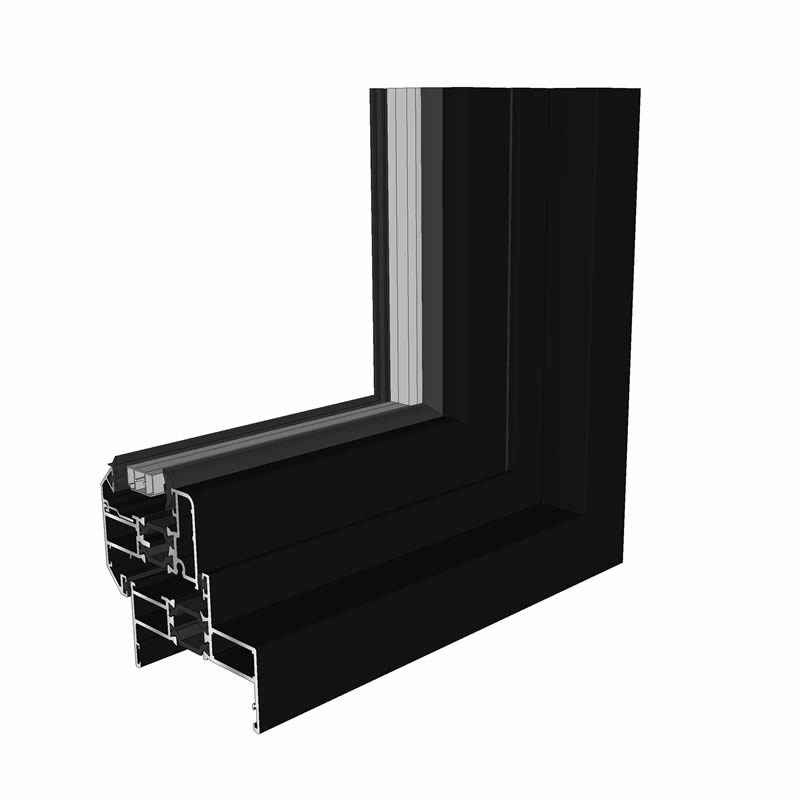

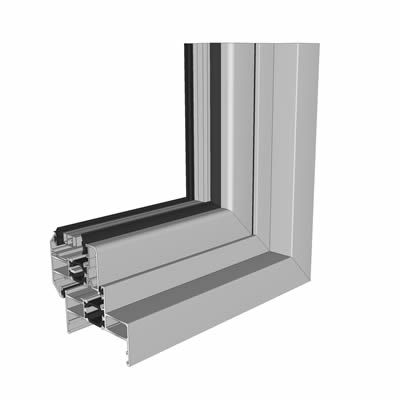

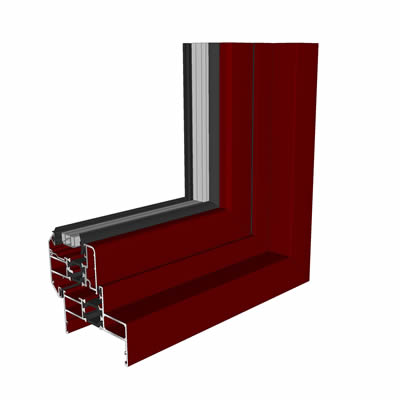

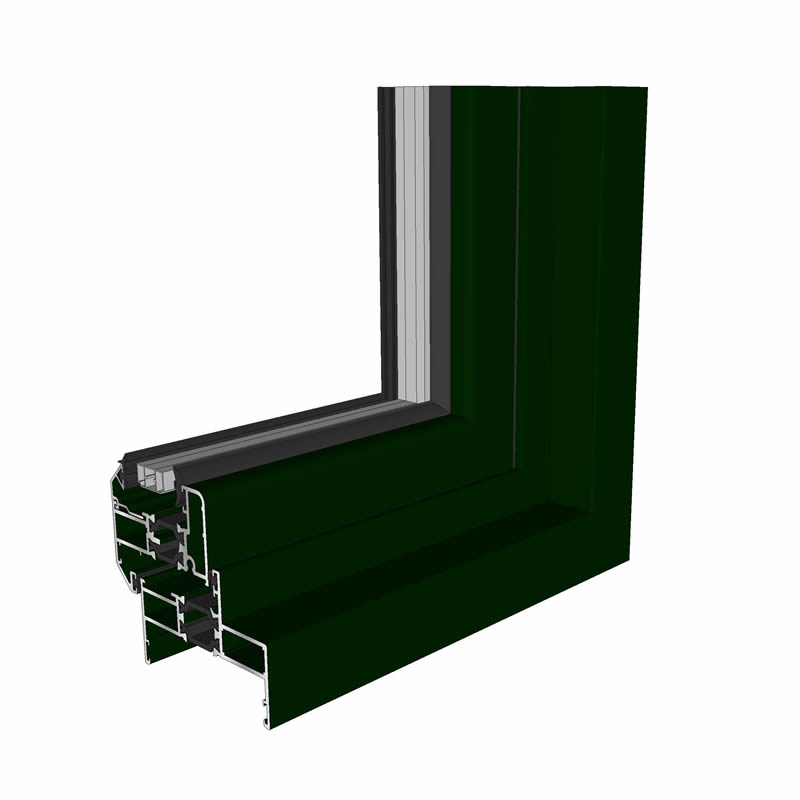

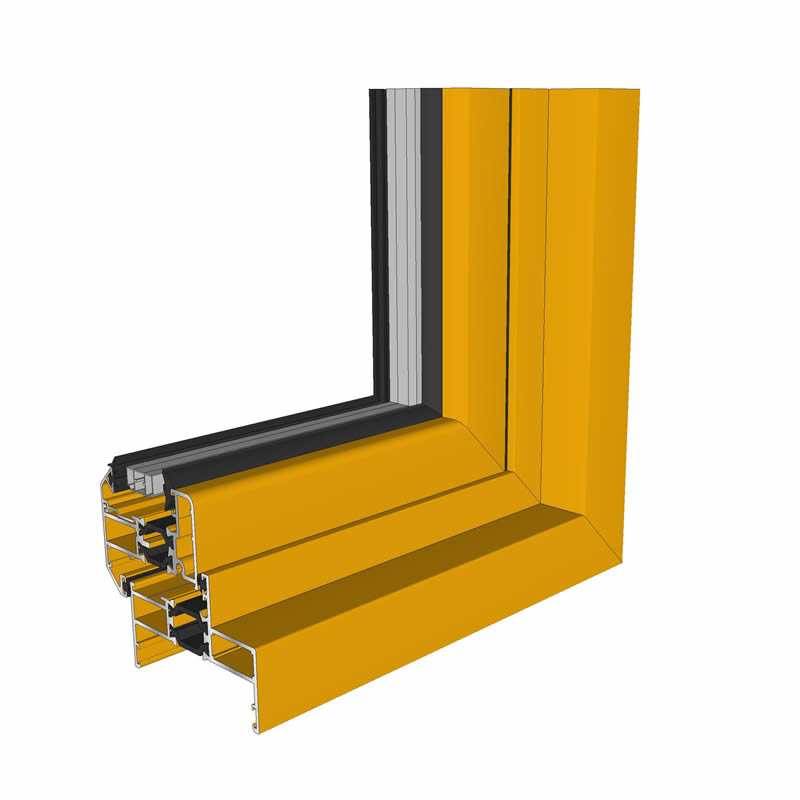

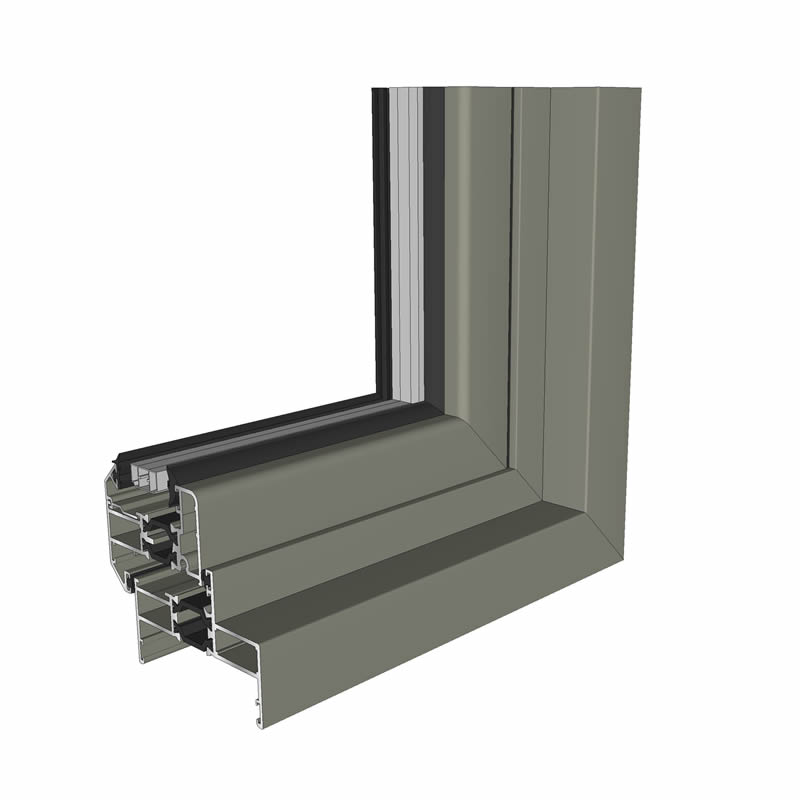

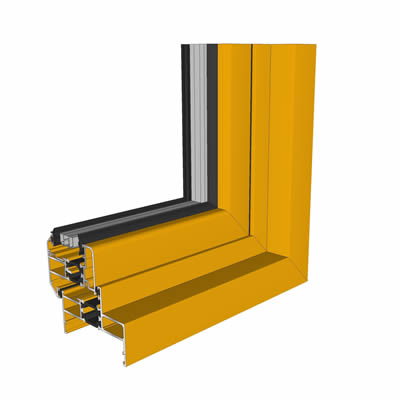

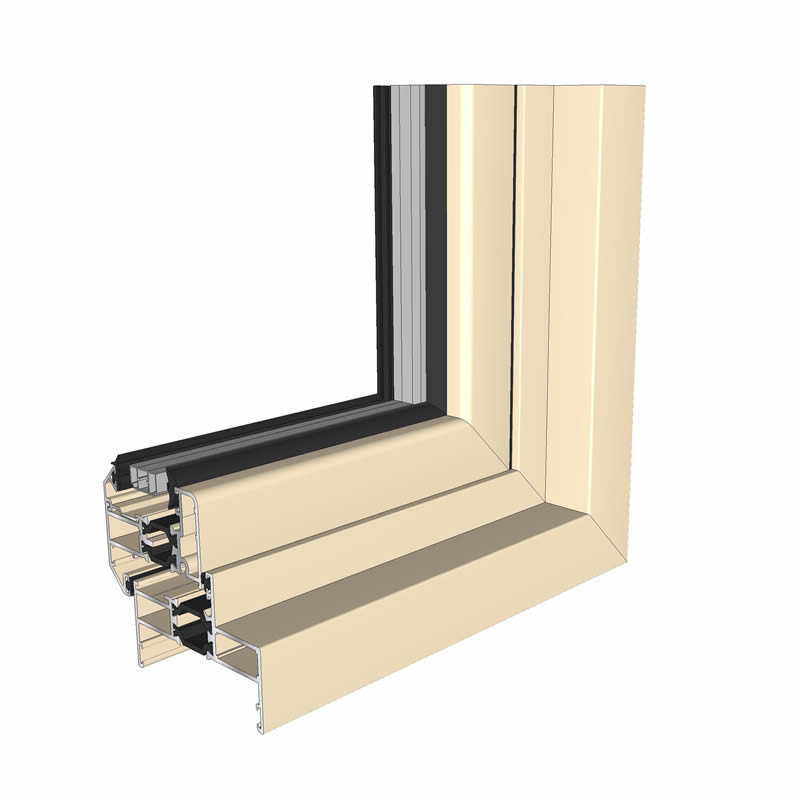

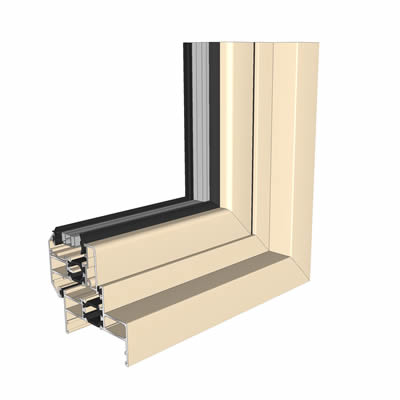

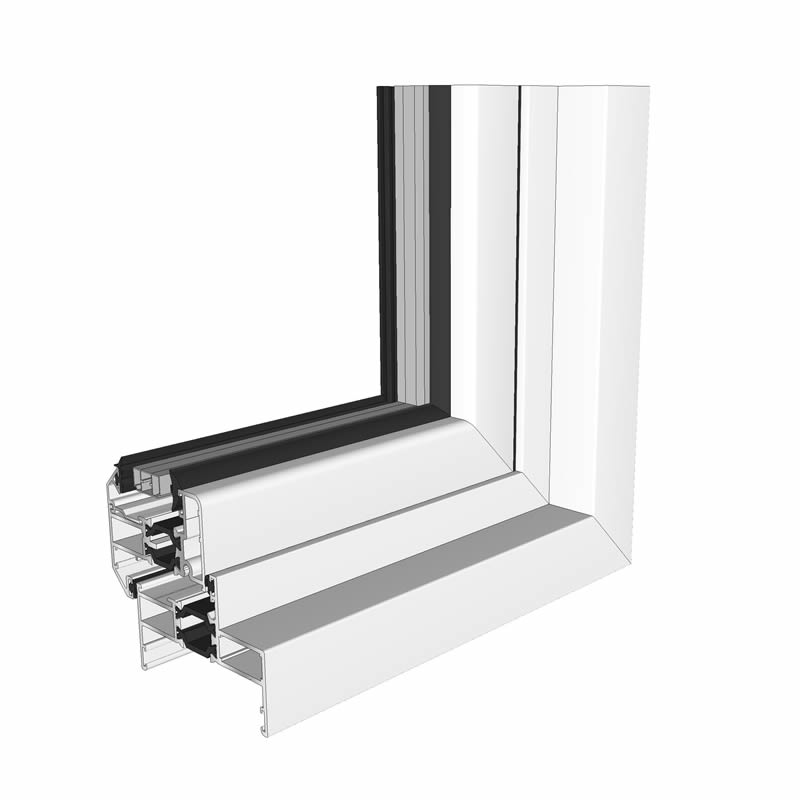

Colour Options

RAL Colour Swatch

Our products are all painted with a hardwearing polyester powdercoat paint, the paint is built to last and baked onto the aluminium. We only use approved polyester powder coat paint specialists, and can therefore offer a ten year guarantee. This finish is high quality and low maintenance, only requiring an occasional sponge down.

Our Smarts 47 Aluminium Windows are available in standard white, our DUR colour range, a range of textured paint finishes, a silver anodised finish and any of over 200 single or dual RAL colour finishes. Dual colour is where you can have different colours inside and out, for example dark grey outside and white inside.

Please provide the colour code (e.g. DUR 7016M) when quoting & ordering.

Please note that these on-screen representations of painted colours are for guidance only, intended to provide an indication of colour. Duration Windows cannot be held responsible for any discrepancies between on-screen and actual painted colours.

Trade Supplier of ALUK products Smarts Systems approved fabricator. We are the largest supplier of Smart products in the UK. BFRC British Fenestration Rating Council - under the Window Energy Rating Group Scheme We are CE Marking complient
