Royale 'Putty-Line' Window Technical

The sizes detailed below are for guidance only, maximum widths can vary depending on your chosen height and vice versa. If the sizes you require are less than the minimum or exceed our maximum recommended sizes please ask our technical department for advice.

Features
Recommended Sizes (Top Hung)
Min. Width 350 mm
Max. Width 1250 mm
Min. Height 300 mm
Max. Height 1250 mm
Recommended Sizes (Side Hung)
Min. Width 350 mm
Max. Width 650 mm
Min. Height 350 mm
Max. Height 1250 mm
Window Performance
Energy Rating
600 Pa
Air
Permeable
900 Pa
Water
Tightness
2000 Pa
Wind
Resistance

These statistics apply for:
18mm double-glazed sealed units, 92% krypton gas filled, Planitherm Total +, 8mm spacer. (Glass - 1.2 centre pane U-value*, g value of 0.74). Stats to be confirmed by testing carried out by Wintech.
Specifying - Suitable Applications
  • Suitable for use in light commercial and domestic applications.
  • Meets building regulations for new build. (For Oct 2010)
  • Meets building regulations for replacement and refurbishment projects. (For Oct 2010)
  • Compliance with Doc. Q for new dwellings is to be confirmed. (Oct. 2015) - Find Out More »
  • Suitable for use in listed buildings, heritage / conservation areas and period properties.

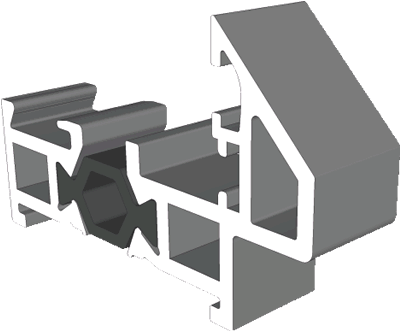

Profiles
Outerframe Depth 33 mm
Sash Depth 40 mm

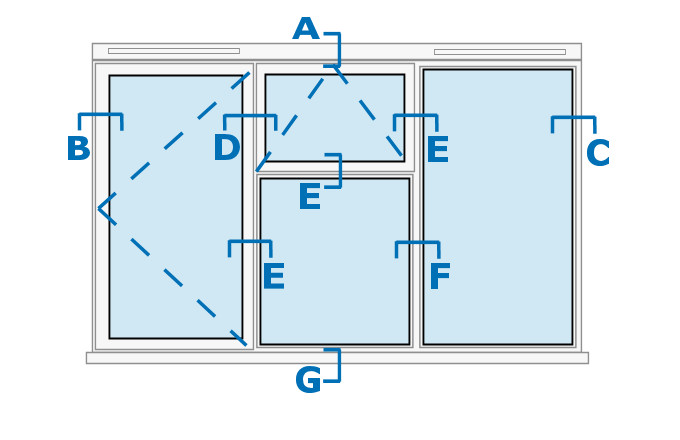

Sight-lines
Frame Extensions ¹ (A) 37 mm
Openers (B) 50 mm
Fixed Lites (C) 25 or 32 mm
Opener - Opener (D) N/A / 108 / 89 mm
Opener - Fixed Lite (E) 73 / 83 / 70 mm
Fixed Lite - Fixed Lite (F) 48 / 58 / 52 mm
Projection Cill (G) 25 mm
Sealed Unit Depth 18 mm

Please note: Sight-lines depend on whether you specify the traditional couplers only construction or the transoms and mullions construction (No Show Couplers / Couplers / Transoms & Mullions). The SW0052 / 0053 outerframe is used when the transoms and mullions construction is specified, this results in 32mm externally glazed fixed lites.

¹ If trickle vents are required they are inserted into the 42mm head extension.
² An optional 25mm projection cill, can be added to protect the brick work under the doors.

Technical Downloads
Royale Putty-line Transom Section Identification
(Technical drawings of profiles, combinations & section sight-lines.)
PDF
1.3 Mb
Royale Putty-line Coupled Section Identification
(Technical drawings of profiles, combinations & section sight-lines.)
PDF
2.0 Mb
Royale Wood Frames
(Technical drawings of dimensions and profiles)
PDF
0.4 Mb
AutoCAD Drawings - Downloads
Technical drawings can be provided in DWG or DXF format, please contact us.
