Internal Room Divider Technical Specification

The specifications detailed below are intended for use as guidance only. If the sizes you require are less than the minimum or exceed our maximum recommended sizes, or if you have any other queries please ask.

Recommended Sizes
  2 Panel 3 Panel 4 Panel 6 Panel
Min Width 1200mm 1800mm 2400mm 3600mm
Max Width 3000mm 4500mm 6000mm 6400mm
Min Height 1850mm 1850mm 1850mm 1850mm
Max Height 2500mm 2500mm 2500mm 2500mm

If your required sizes are less than the minimum recommended sizes or exceed the maximum recommended sizes then please contact our technical department.

Doors over 6500mm in width will use two sections mechanically joined. Maximum panel weight is 40kg.

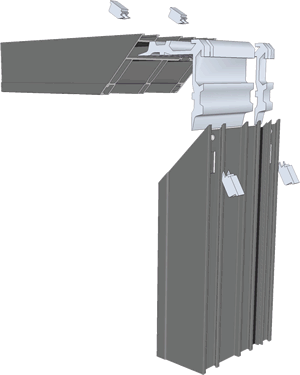

Frame Dimensions
Outer frame depth at the edge - front to back(mm) 99
Sash Depth - front to back (mm) 32
Low Threshold Height (mm) 23
Single Glazed - Clear Toughened (mm) 6
Double Glazed - Clear Toughened (mm) 24 ( 4 x 16 x 4)
Sight Lines
Head (mm) 110
Bottom (mm) 80
Jambs (mm) 110
Meeting Stiles (mm) 43

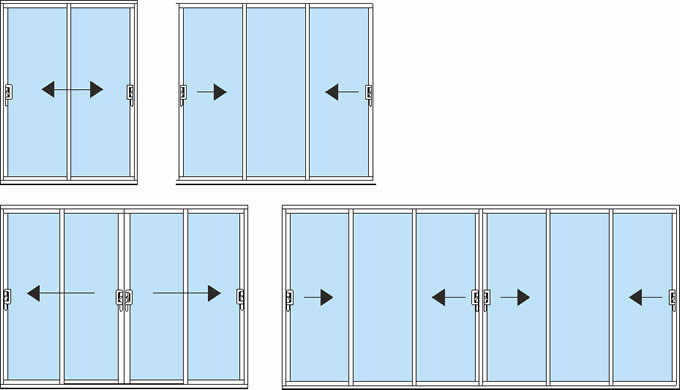

Opening Styles
Room Dividers

Doors shown are all viewed from the key locking side.

No of Door panels 2 3 4 6
Min Width 1600 1800 2400 3600
Max Width 3000 4500 6000 6400
Technical Downloads
(Technical drawings)
4.9 Mb
AutoCAD Drawings - Downloads
Technical drawings can be provided in DWG or DXF format, please contact us.
