Secondary Glazing;
Luxury Subframe System

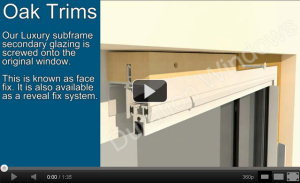

Our Luxury Subframe system is comparable in slimness to our Economy Odd Leg system, but provides a nice clean and even finish, which helps the secondary glazing to blend in. It has an additional wooden frame that wraps the aluminium frame. The wood used for the subframe is either MDF (Medium Density Fibreboard), Tulip (a pale hardwood) or solid Oak (hardwood).

The Subframe comes in different depths; SF1 for face fix, SF3 and SF4 for reveal fixing. Cover trims are supplied with the system to hide the wooden subframe and the fixing holes. Aesthetically it is the most attractive of our systems, making it highly suitable for domestic applications.

Now Available With Solid Oak Subframe & Trims

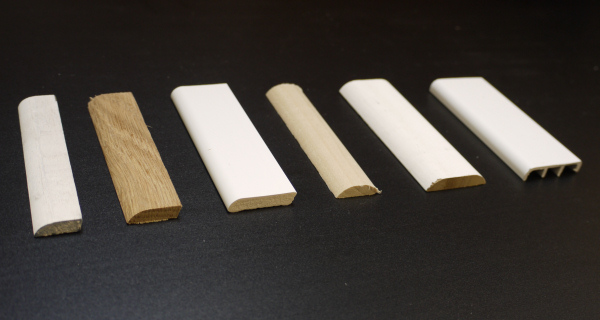

Cover Trims

Cover trims are used to hide the subframe and the fixings, providing a nice clean finish for your Secondary Glazing. We offer plastic cover trims with our MDF subframe's and hardwood subframe's come with trims to match, i.e. tulip or solid oak. You can however request to have different trims if you wish (i.e. MDF subframe and solid Oak trims). There are five different trims available in different shapes and sizes, each suited to different applications:

Available Trims

TM1 - is 22mm wide & has one curved edge.
TM2 - is 29mm wide & has one curved edge.
TM3 - is 22mm wide & has two curved edges.
TM4 - is 34mm wide & has two curved edges.
TM5 - is 37mm wide & has one curved edge.

We have a range of different sizes of wooden subframe available, which will enable you to face fix or reveal fix your secondary glazing. Click here to find out more.
