Monarch Aluminium Windows

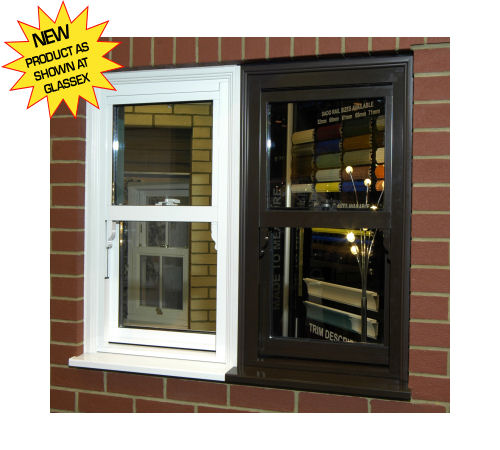

Part L Compliant vertical sliding windows with Single or Dual colour options.

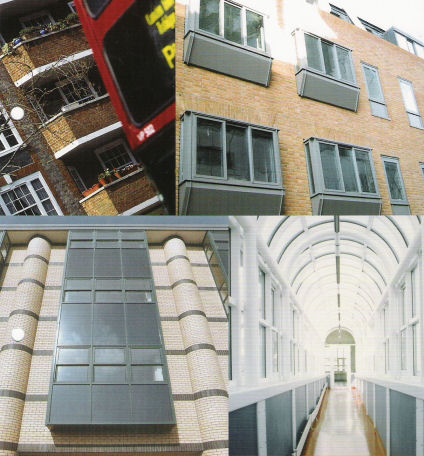

Designed with safety and security in mind, Monaframe and Dualframe sliders are an ideal choice for public sector application such as schools, colleges and hospitals as well as commercial installations.
The slimline outerframes make it particularly popular for refurbishment projects when replacing traditional timber frames.
Features
- Excellent weather performance, security and safety features
- A suite of profiles which can be used to construct vertical sliding windows as well as fixed lights up to 5m2.
- Integrates with many other Sapa systems including Gridframe, Proframe Window Wall, Dualframe and Monaframe.
- Single or dual colour capability: different colours may be selected internally & externally, and hardware can be colour matched. Polyester powder coat finishes are available to BS 6496 in a wide range of colours.
- When safety is critical, choose from the optional slider restrictors.
- Ventilator option available.
- Superior thermal performance: the polyamide thermal barrier used in most profiles ensures compliance to Part L.
- Security is designed in.
- Tested in accordance with BS 6375-1: 1989 - weather performance.
- 28mm glass units.
- Glazed panel design allows re-glazing on site.

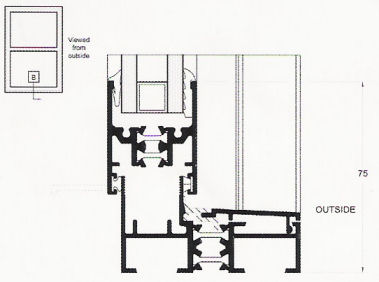

Dualframe & Monaframe Vertical Slider
Dualframe Cill (not to scale)
- The Dualframe vertical slider can be constructed to form 2 pane windows with an overall maximum height of 2700mm.
- Max width: 1500mm, Max weight: 43kg per pane.
- Available as 'made to order' kits
- Can be combined with fixed lights to form composite units using integral mullion transoms or coupling profiles.
- Optional decorative horns.
- Can be installed from inside the building.
- Tilt restrictor option.
- Exceeds exposure category "2000 Special".
